Fluorescence Immunoassay Analyzer

Accurately send out reports within 30 minutes, quick triage for critically ill patients

Denmark Radiometer's innovative immunofluorescence analyzer AQT90 FLEX Analyzer has four major features: accurate, fast, safe, and simple. The test report can be completed within 30 minutes, which can improve the efficiency of multiple cardiac function markers, provide rapid diagnosis and triage of patients with suspected Acute Coronary Syndrome (ACS), Heart Failure (HF), Pulmonary Embolism (PE), and Sepsis, thereby shortening TAT (turn-around time) and LOS (length of stay), and effectively relieving emergency congestion. It is the best bedside test instrument (POCT) to assist clinical detection of acute and severe diseases.

Auxiliary diagnosis of AMI : Cardiac Troponin I

Cardiac troponin I is currently the most sensitive laboratory test that can detect whether a patient has coronary reperfusion early and non-invasively. Using the Radiometer AQT90 FLEX fluorescent immunoassay analyzer to detect Troponin I, the data can be obtained in just 18 minutes, which assists the emergency department to quickly assess the degree of myocardial necrosis, and then efficiently take the most appropriate treatment.

Auxiliary diagnosis of acute heart failure:N-terminal Pro-Brain Natriuretic Peptide (NT-ProBNP)

Acute heart failure is caused by structural or functional abnormalities of the heart that cannot pump enough blood to the body. Its main symptoms are wheezing and shortness of breath, but other diseases such as chronic obstructive pulmonary disease, asthma, pneumonia, anxiety and pulmonary embolism, etc. can also cause this condition. So a correct and rapid differential diagnosis is extremely important. AQT90 FLEX Fluorescence Immunoassay Analyzer performs NT-proBNP test, which can be obtained in only 10 minutes, and the speed of diagnosis can be accelerated for further treatment in advance.

Aids in the diagnosis of pulmonary embolism: D-Dimer

Deep vein thrombosis (DVT) carries a high risk of complications, such as pulmonary embolism (PE). D-Dimer test can be used to assist in the diagnosis of deep vein thrombosis (DVT), pulmonary embolism (PE) and disseminated intravascular coagulation (DIC).

D-Dimer generally takes about 1 hour to test, and AQT90 FLEX provides a 20-minute rapid test, which can assist physicians to exclude the possibility of deep vein thrombosis or early detection of pulmonary embolism.

Characteristic of AQT 90 FLEX – Accurate/Fast/Safe/Simple
1. 30 samples can be tested per hour, and the types of samples that can be analyzed are whole blood or plasma.
2. Test items include cardiac markers (Troponin I, Troponin T, CK-MB, Myoglobin, NT-Pro BNP), inflammatory factors (CRP), coagulation factors (D-Dimer), early pregnancy detection (beta-hCG). All test items could be selected optionally and combine according to clinical conditions, and the same blood collection tube can complete the analysis of up to 5 test items.
Quantitative results of laboratory quality can be obtained in just 10 to 28 minutes, and the inspection report can be completed within 30 minutes, which effectively solves the problem of emergency congestion.

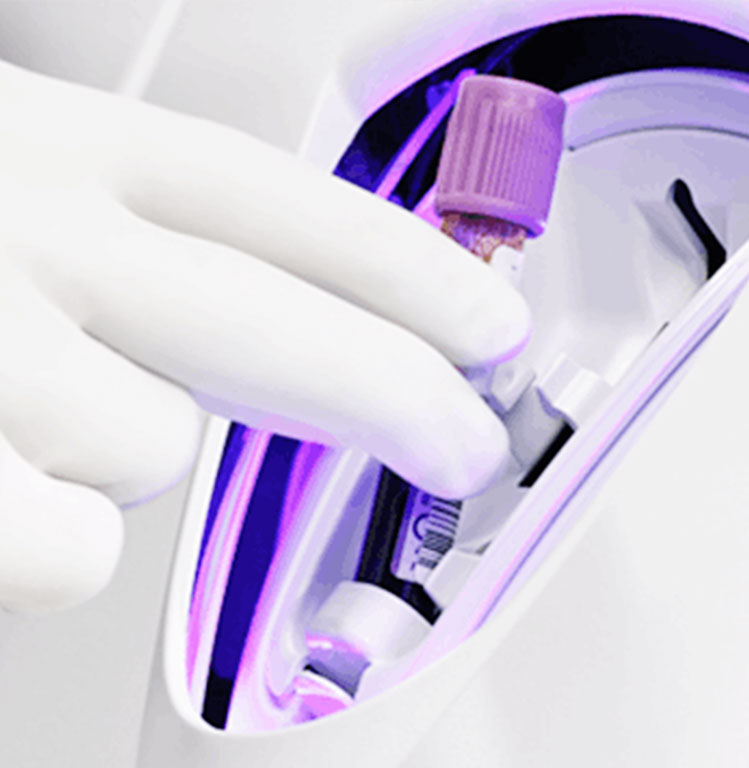

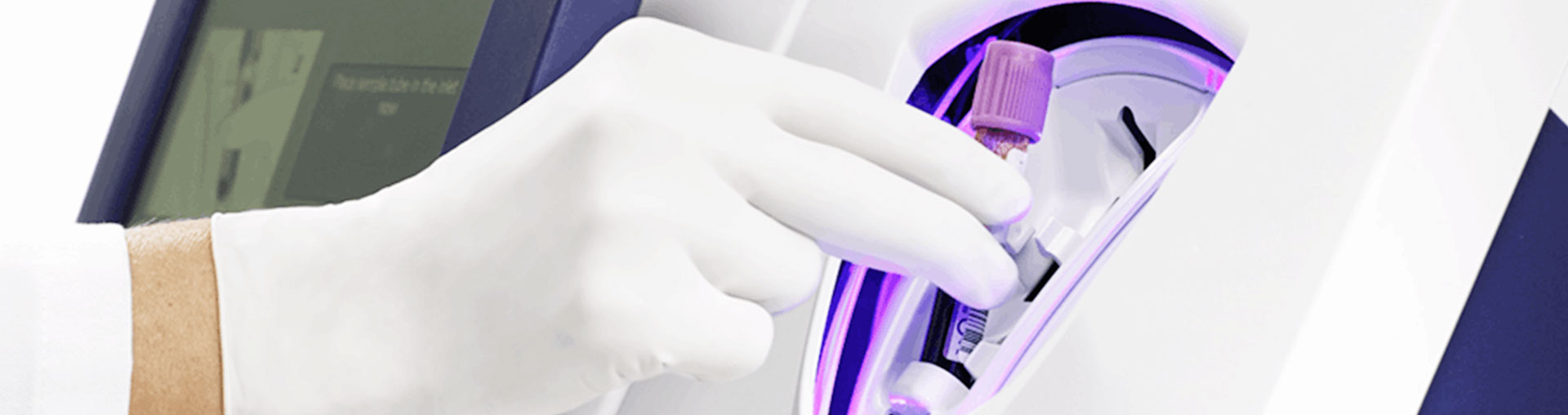

Original blood collection tubes are used directly on the machine, without sample pretreatment, that could completely avoid the risk of contamination and infection caused by human error and blood sample exposure

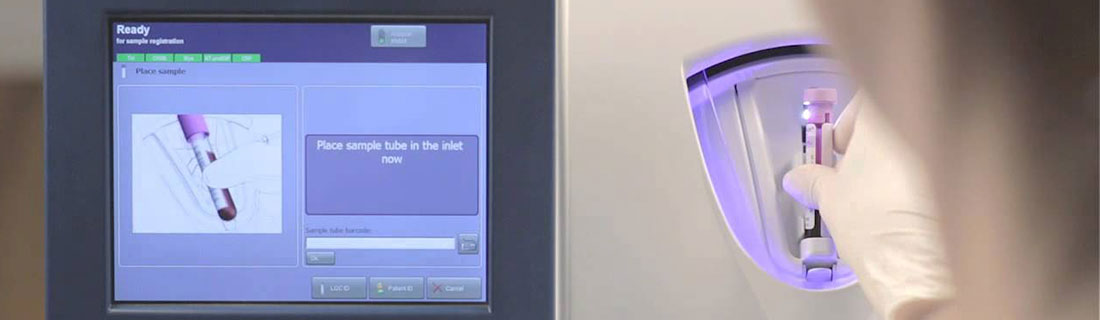

Simple operation interface with a built-in automatic system checking mechanism to ensure the accuracy of the instrument
